PC-3000 Flash is a hardware-software system intended for recovering data from NAND-based devices in cases where there is no access through the standard interface.
- USB Flash Drives
- SD / microSD cards
- CF Compact Flash
- Memory Stick & Mini Flash devices
- eMMC (embedded MultiMediaCard)
- Monolithic Flash Devices
- Mobile phones (without hardware encryption)
Data recovery from USB drives, memory cards and mobile storage devices is often complicated due to controller damage. PC-3000 Flash allows access to raw NAND memory, significantly increasing the chances of successful recovery even in severe cases.
PC-3000 Flash contains a powerful set of algorithms for automatic data extraction, significantly reducing manual work for complex NAND reconstruction tasks.
PC-3000 Flash Capabilities
- Memory chip libraries automatically updated via the Internet
- ECC algorithms library
- XOR library
- Parity transformation support
- Spare area (OOB) library
- Dynamic XOR library
- Reference memory database
When new memory chips appear on the market, libraries are updated automatically. This ensures long-term relevance and high recovery success rates.
Supported Types of Memory Chip Covers
- TSOP-48 / TSOP-56

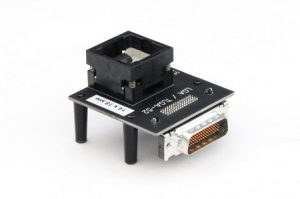

- LGA-52 / LGA-60
- BGA-152 / BGA-132

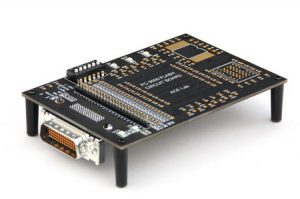

- Circuit board adapters
Memory Chip Reading Speed
Determined by memory parameters, reading process configuration and chip architecture.
Indicators
- Active status of the reader
- Power supply on the control Vcc
- Power supply on the control VccQ
Integrated Power Control Adapter Parameters
- Voltage range: 0.8V – 4.5V
- Current limitation: up to 1.5A
- Delay in buffer element: 2 ms
- Supported Windows OS: Windows 7/8/10 (32/64-bit)
