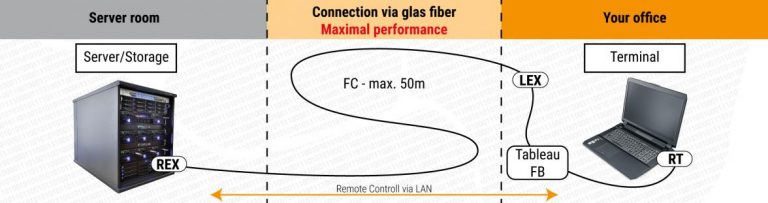

The Remote Imaging System (RI) consists of three logical units:
- Triple Imaging Shelf (TIS)
- Server / Storage Unit (SU)
- Remote Terminal (RT)
The advantages of the RI system are its flexibility, its ability to cater for special wishes, the possibility of separating the units, and its high scalability.
The server can be integrated into an existing server room, used with existing storage systems, and the TIS units can be monitored directly from your workplace.
From the comfort of your desk, you can create a forensic image of a suspect device and store it securely, while investigators simultaneously examine previously stored data.
The system can be controlled remotely via a special terminal, a workstation, or even a laptop. Through clustering, RI systems can be freely scaled and adapted to individual needs.
- High speed imaging of up to 6 devices simultaneously (up to 185 MB/s)
- All major interfaces supported: PCIe / SATA / IDE / SAS / USB / FireWire
- Distance to destination up to 50 meters
- Fiber optic connection between target and destination
| Computer Case | 2U Server Chassis with Rack Mount Kit |
| Power Supply | Redundant Power Supply |
| Mainboard | Dual socket LGA 3647 |
| CPU | 2× Intel Xeon Scalable CPUs |
| RAM | Up to 2TB RAM |
| System Drive | 2× SSD RAID |
| Drive Bays | 12× 3.5” Hot-swap Drive Bays |
| Cache | SSD Cache / Swap drive for system acceleration |
| I/O | 12× USB 3.0, 2× Gigabit LAN, 1× 10GB Fiber Channel |
| Computer Case | 2× 19” 2U Rack mount, 1× 19” 1U Switch & control unit |
| Forensic Bridge | 2× Tableau T356789u PCIe / SATA / IDE / SAS / USB / FireWire |
| Cooling Tray | 2× 3× ICYDOCK TRAY 5.25” |
| USB Extender | 3× USB 3.0 to Fiber Channel Extender (up to 50m) |
| Peripheral | 1× 19” Rack Mount Display KVM Console |
| Software | Windows Server, Linux or Dual Boot |
